775 AM Touring

Name: 775 AM Touring - Plugmoto
Price: 10700.00 NZD
Availability: OutOfStock

$10,700.00

Inquire about this bike

Tags: pre_order

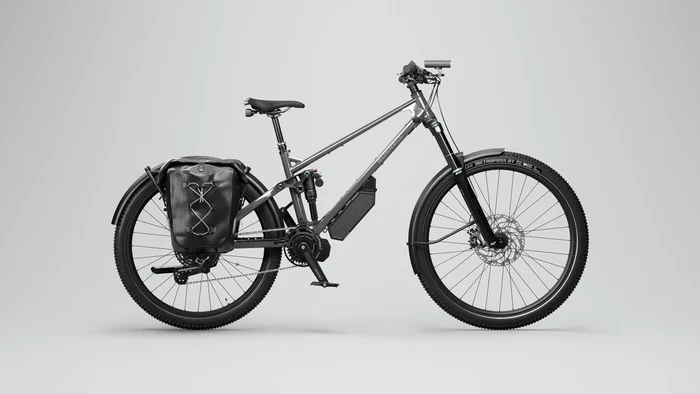

A city-savvy bike that’s ready for anything, the 775 AM Touring is all about fuss-free fun. Built for smooth commutes, quick errands, and mountain escapes, it blends an efficient urban design with features that turn what’s everyday into something epic.

Overview

Intended use: Trail + Commuter
Front travel: 160
Rear travel: 150
Range: 18-44 mi [30-70 km]

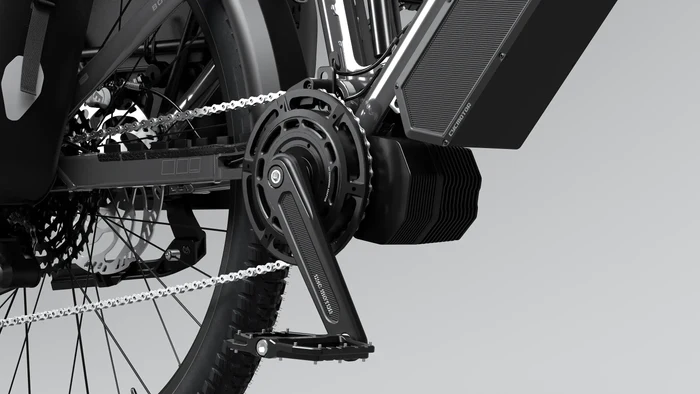

Compact Design, High Performance: The 775 AM Motor

The Photon motor packs 1,200 watts of peak power and 110 Nm of torque, delivering outstanding versatility and performance. Built to Class 2 compliance, the throttle offers effortless cruising up to 20 mph (25 km/h). Riders can also switch to Class 3 mode in the Bonnell Riding app, disabling the throttle and increasing the top assisted speed to 28 mph (45 km/h). With Pedal Assist (PAS), you get a seamless mix of motor and pedal power—ready to take on any trail and define your own epic adventure.

Elevate Your Ride: Intuition Display

Sleek, powerful, and ultra-responsive interface that puts control and real-time performance data within view.

Power Your Ride: The AM Batteries

The A-series quick-connect battery comes standard on the 775 AM in a 520Wh configuration, with the option to upgrade to a higher-capacity 780Wh version to suit your riding needs. Designed to keep you powered for longer rides, it offers a range of up to 43 miles (70 km). Whether you stick with the standard 520Wh or opt for the 780Wh upgrade, both deliver exceptional performance and range for your adventures.

775 AM Frame & Conversion Kit

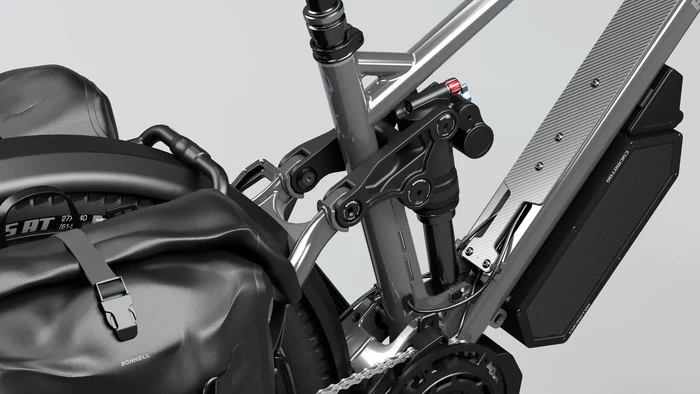

The 775 AM features a durable chromoly frame, aluminum chainstays, and quality suspension for smooth, controlled rides. The conversion touring package adds allterrain versatility for commuting, touring, and light off-road use but isn’t suited for extreme downhill riding.

Touring Package for 775 AM

Designed to protect and empower your commute, the Touring Kit makes it easy to transition seamlessly from the road to your day. Converting your AM bike to a fully equipped touring setup is simple and quick taking less than 30 minutes and requiring only minimal tools, so anyone can do it with ease.

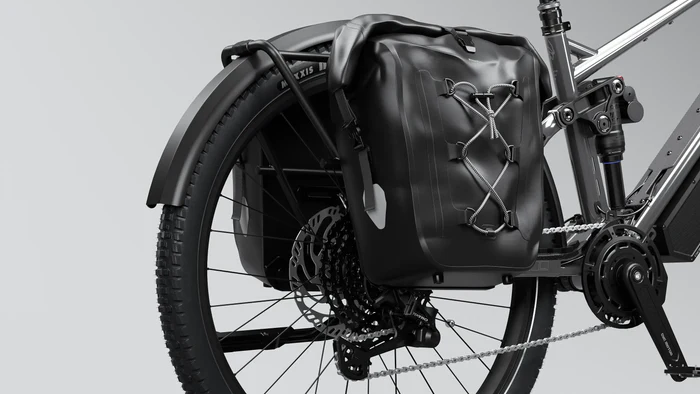

Stay prepared with waterproof dual bags for easy storage, wide fenders for all-weather protection, and a heavy-duty rear rack supporting up to 30 kg (66 lb). Bright Magic Shine lights and reflective Maxxis Metropass AT tires enhance visibility, while a sturdy kickstand and bell add everyday convenience.

Paired with the Photon motor’s 1200W peak power and 110 Nm torque, this setup ensures you’re ready for any commute or adventure. Cruise effortlessly or unleash full power with the Bonnell Riding app—where will your ride take you?

Drive Unit	CYC Photon
Battery	CYC A-serie quick connect 520Wh or 780Wh
Display	CYC Intuition integrated smart display
Chainring	CYC steel narrow wide 34T
Charger	CYC 4A charger
Throttle	Thumb throttle
Bashguard	CYC Heavy duty 6061T6 aluminium MTB bash ring 34-36T compatible
Rear Derailleur	Tektro RD-M5100, 10speed, with clutch
Rear Cogs	Microshift 10speed cassette CS-EH104 11-48T for e-bike
Crank	CYC forged, 165mm
Shifters	Tektro SL-M5000-10R, 10 speed
Chain	BKMC e10sport , EPT (anti rust)
Chainguide	BONNELL guide compatible with 34-38T chainring
Brakes	Magura MT5, 4pistons, MDR-C 220F/203R rotors
Brakes Levers	2-finger aluminum light weight lever blade, flip flop design allows for regular or moto setup
Front Hub	Alex rims EMP5 15*110 Boost, E-bike hubs sandblasted finish
Rims	Alex rims EMP5, E-bike reinforced, 30mm wide rims, tubeless ready, 36 holes, sandblasted finish
Wheel Size	27.5" rear, 29" front
Rear Hub	Alex rims EMP5 12*148 Boost, E-bike hubs HG steel freehub body, super strong Impel ratchet system, 5 bearings, sandblasted finish
Spokes	Stainless Steel, 14g
Tires	Rear: Maxxis DHR II DD Maxx terra tubeless ready 2.5 Front : Maxxis Assegai DD Maxx grip tubeless ready 2.5
Brake Type	Disc 6 holes
Tire Size	2.5" front and rear
Tubes	Maxxis welter weight 2.5

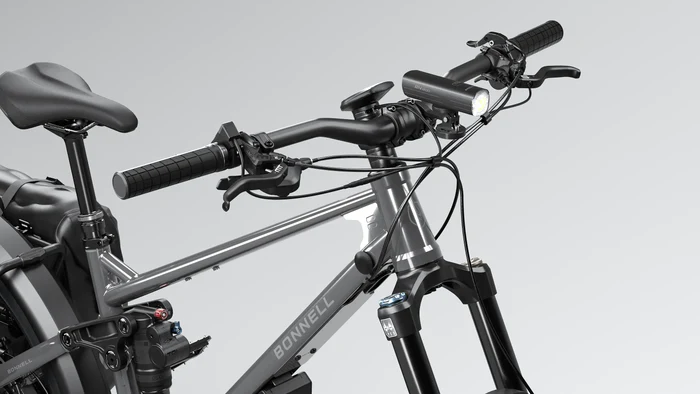

Handlebar	Bonnell 780mm, 31.8mm 35mm rise (small/medium) 50mm rise (large/XL) 9deg backsweep, black stealth finish
Grips	Bonnell single clamp black stealth finish, tacky rubber, ergonomic and grippy pattern. Integrated bar plug (closed end), 30mm diameter on small/medium , 32mm diameter on large/XL
Seat Clamp	Bonnell 34.9 black stealth single bolt
Stem	Bonnell forged, 45mm long, 31.8mm clamp, black stealth finish

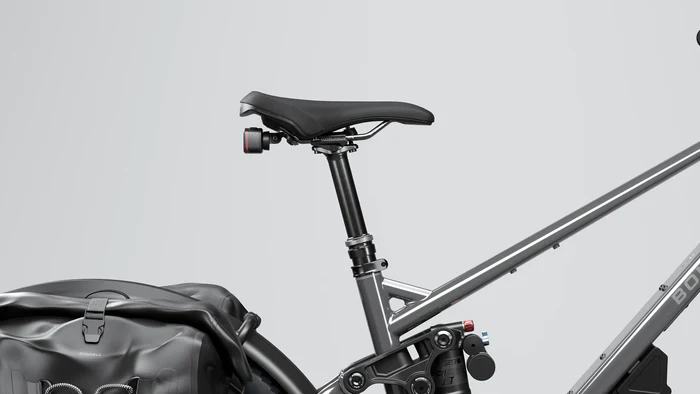

Saddle	Bonnell, by Velo, short nose, reinforced sides, cromoly rails, "I-carry" transport handle.
Seatpost	Tranz-X 30.9mm, 2 bolt saddle clamp, 7075 aluminium , hard anodized. Adjustable drop 140-170mm on S/M and 170-200mm on L/XL.
Stem spacers	5*5mm spacers included for height adjustement
Seatpost lever	Tranz-X J22.2 thumb trottle compatible lever
Wheel Sensor	CYC Bluetooth speed sensor.
Pedals	Bonnell flat pedals aluminium, 110*98mm platform size, 17mm thick, sealed bearing and bushing contruction.
Multi tool	Bonnell 13 functions multi tool
Suspension	Shock pump
Tubeless valves	2 valves included in box
