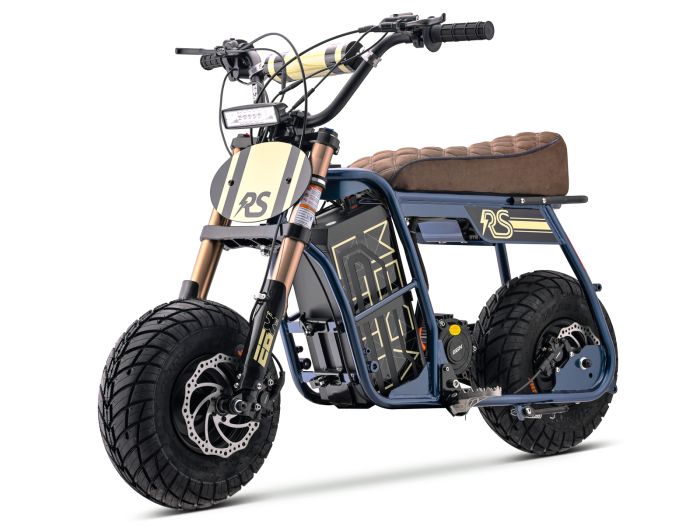

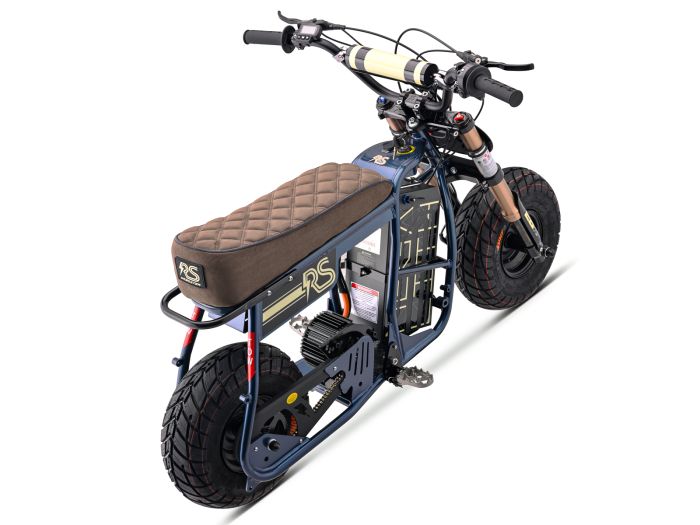

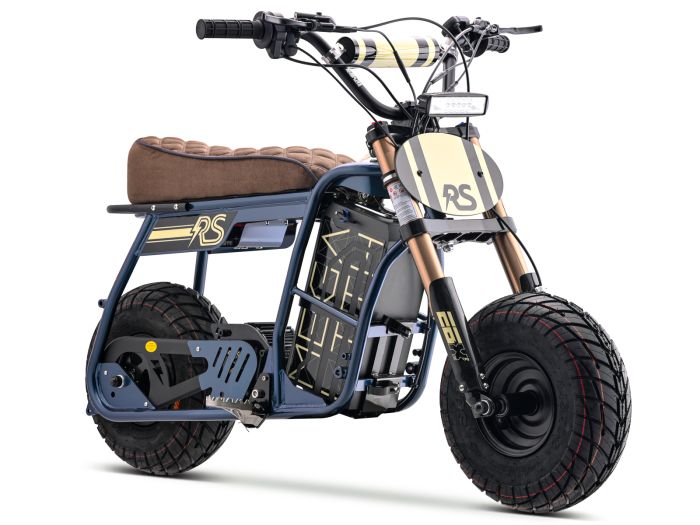

Ebox Dragster RS Navy

$4,500.00

THE EBX Dragster is FINALLY HERE! In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package. Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened. Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display. Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats. The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets.

Frame type

Full duplex

Fork

100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions with Billet 6061 T6 CNC machined triple clamps

Bar Risers

6061 T6 CNC machined 35mm rise Ø22.2

Front wheel size

6"

Rear wheel size

6"

Front brake

Hydraulic Disc (Right lever) e-moto brakes

Front disc

Wavey rotor 180mm, 6 bolt 48mm BCD

Rear brake

Hydraulic Disc (left lever) e-moto brakes

Rear disc

Wavey rotor 160mm, 6 bolt 48mm BCD

Front tyre

145/70-6 SUNF fast SM tyres

Rear tyre

145/70-6 SUNF fast SM tyres

Chain

Uprated performance gold 219H 108L

Gearing

Front 10T, Rear 55T

Max load

100kg

Handlebar

6061 T6 29.5" x 7", with 3 piece crossbar and bar pad

Seat

Luxurious suede RS wedge seat

Motor

72V EBX PMSM motor with temp feedback and encoder

Rated Power

5.4KW

Peak power

6.3KW (8.5hp)

Max RPM

9,000

Battery

New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch

Controller

80 amp fardriver controller

Throttle

SURRON style full twist

Display

TFT odometer display with 3 speed modes and fault code analysis software

Connectors

Automotive connectors with sealed wiring harness

Charger

AC 100-240V, Output: 84V, 6A

Charge time

4-5 hours

Range

28-31 miles (45-50Km)

Top speed

56mph (88Km/h)

External adjustability

3 riding modes

Frame construction

High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible.

Waterproof

IP54

Other

USB A + C charging port

Wheelbase

910mm

Ground clearance

120mm

Seat height

610mm

Bar height

825mm

Warranty

EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information

Light

LED headlight and switch
